Stainless Steel Large Holes Wire Mesh Conveyor Belt For Oven Dryer

Brand Name : COMESH

Model Number : COHE250307

Certification : FDA

Place of Origin : CHINA

MOQ : 5 meters

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 meters per month

Delivery Time : in 8 -10 days afer payment

Packaging Details : plywood case to make sure the shipping safty

name : Wire Mesh Conveyor Belt

material : Stainless Steel 304,galvanized steel

application : baking,drying,freezing.frying and so on

feasures : big opening area,heavy duty loading weight,stable strucutre,straight running

sample : available for testing

flat wire size : 1.5X12.7mm,1.5X14.1mm,1.2X12.7 and so on

rod diameter : 3.0,4.0,5.0mm and so on

width and length : can be customized as per your requirement

Contact Now

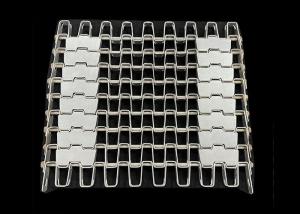

Stainless Steel Large Holes Wire Mesh Conveyor Belt for oven dryer

brief introduction of Stainless Steel Large Holes Wire Mesh Conveyor Belt for oven dryer

Stainless Seel Large Holes Wire Mesh Covneyor Belt is also called Honey Comb Conveyor Belts,which is an ideal choice for any application which requires both durability and an open belt design whilst maintaining a flat carrying surface.A large open area makes the honeycomb belt effective for processes such as washing, drying, cooling and cooking

Featrues of Stainless Steel Large Holes Wire Mesh Conveyor Belt for oven dryer

  • opening mesh construction which allows for quick drainage and free air circulation
  • easily cleaned and easily joined to save time
  • Positive driven for excellent belt tracking
  • Up to 81% open area for excellent flow through
  • flat surface of honeycomb conveyor belt supplies stable conveying during using
Application Stainless steel Large Holes Wire Mesh Conveyor Belt
  • casting
  • baking
  • free circulation drainage and air
  • packaging
  • washing
  • drying
  • cooling and freezing
  • Canning
  • recycling
  • weed clearing

type of this kind of mesh conveyor belt

Honeycomb Belt With Clinged Edges Honeycomb belt with welded edges
Stainless Steel Large Holes Wire Mesh Conveyor Belt For Oven Dryer Stainless Steel Large Holes Wire Mesh Conveyor Belt For Oven Dryer

Specifications of Stainless Steel Conveyor Belt:

Stainless Steel Large Holes Wire Mesh Conveyor Belt For Oven Dryer

Standard Specifications
specifications Weight(KG/square meter)
FW-24.0-27.3-5.0-(1.5X12.7) 17.59
FW-28.0-27.4-5.0-(1.5X12.7) 19.74
FW-12.7-25.4-5.0-(1.5X12.7) 23.89
FW-12.7-25.4-5.0-(1.5X14.1) 26.09
FW-25.4-25.4-5.0-(1.2X14.1) 16.96
FW-12.7-25.4-5.0-(1.2X14.1) 22.01
FW-14.0-19.05-4.0-(1.2X12.0) 19.87
FW-24.0-27.3-3.0-(1.2X9.57) 9.06
FW-16.0-27.4-3.0-(1.2X9.5) 11.03
FW-15.0-27.0-3.0-(1.2X14.1) 16.58
FW-14.0-13.7-3.0-(1.2X9.5) 17.21
FW-24.0-27.3-5.0-(1.5X12.7) 16.01
The specification above is for reference,please contact with me to meet your unique special needs

Stainless Steel Large Holes Wire Mesh Conveyor Belt For Oven DryerStainless Steel Large Holes Wire Mesh Conveyor Belt For Oven Dryer
